Description

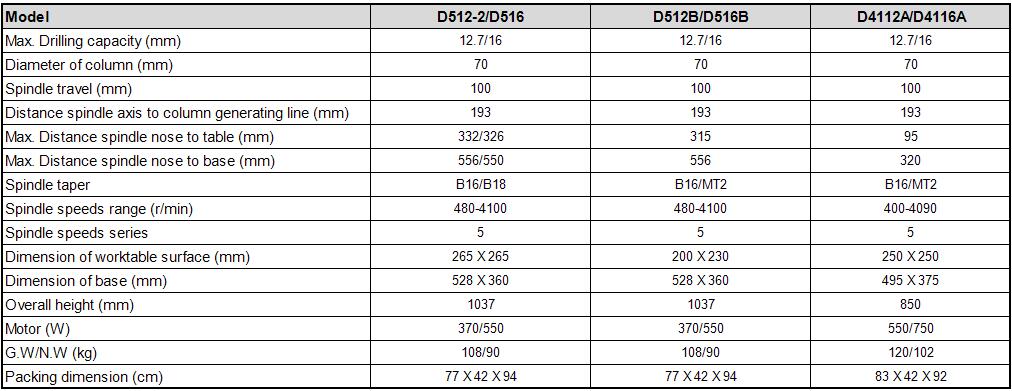

| Model |
D512-2/D516 |
D512B/D516B |
D4112A/D4116A |
| Max. Drilling capacity (mm) |
12.7/16 |
12.7/16 |
12.7/16 |
| Diameter of column (mm) |
70 |
70 |
70 |
| Spindle travel (mm) |
100 |
100 |
100 |
| Distance spindle axis to column generating line (mm) |
193 |
193 |
193 |
| Max. Distance spindle nose to table (mm) |
332/326 |
315 |
95 |
| Max. Distance spindle nose to base (mm) |
556/550 |
556 |
320 |
| Spindle taper |
B16/B18 |
B16/MT2 |
B16/MT2 |
| Spindle speeds range (r/min) |
480-4100 |
480-4100 |
400-4090 |
| Spindle speeds series |
5 |
5 |
5 |
| Dimension of worktable surface (mm) |
265 X 265 |
200 X 230 |
250 X 250 |
| Dimension of base (mm) |
528 X 360 |
528 X 360 |
495 X 375 |
| Overall height (mm) |
1037 |
1037 |
850 |
| Motor (KW) |
0.37/0.55 |
0.37/0.55 |
0.55/0.75 |
| G.W/N.W (kg) |
108/90 |
108/90 |
120/102 |
| Packing dimension (cm) |
77 X 42 X 94 |
77 X 42 X 94 |
83 X 42 X 92 |
PURROS Machinery have various types of Hydro Speed Regulators, Self-Feeding Drill Heads(Units), Multi-Spindle Drill Heads and Servo feed tapping machine, Special Purpose Machines, warmly waiting for you to inquire.
