Description

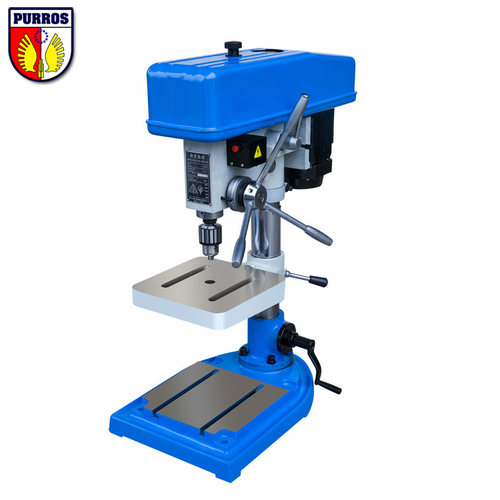

| Model |
D512-2D/D516-2D |
D512D/D516D |
D4120D/D4125D |
| Max. Drilling capacity (mm) |
Φ12.7/Φ16 |
Φ12.7/Φ19 |
Φ20/Φ25 |
| Diameter of column (mm) |
Φ70 |
Φ70 |
Φ85 |
| Spindle Sleeve Diameter (mm) |
Φ50 |
Φ50 |
Φ50 |
| Spindle travel (mm) |
100 |
100 |
125 |
| Distance spindle axis to column generating line (mm) |
193 |
193 |
240 |
| Max. Distance spindle nose to table (mm) |
332/326 |
315 |
367 |
| Max. Distance spindle nose to base (mm) |
556/550 |
556 |
630 |
| Spindle taper |
B16/B18 |
B16/MT20 |
MT2/MT3 |
| Spindle speeds range (r/min) |
480-4100 |
480-4100 |
365-3150 |
| Spindle speeds series |
5 |
5 |
5 |
| Dimension of worktable surface (mm) |
265 X 265 |
200 X 230 |
280 X 230 |
| Dimension of base (mm) |
528 X 360 |
376 X 566 |
590 X 375 |
| Overall height (mm) |
1037 |
1037 |
1127 |
| Motor (KW) |
0.37/0.55 |
0.37/0.55 |
0.75/1.1 |
| Net weight (kg) |
≈90 |
≈90 |
≈140 |
| Packing dimension (cm) |
77 X 42 X 94 |
77 X 42 X 94 |
82 X 48 X 102 |
