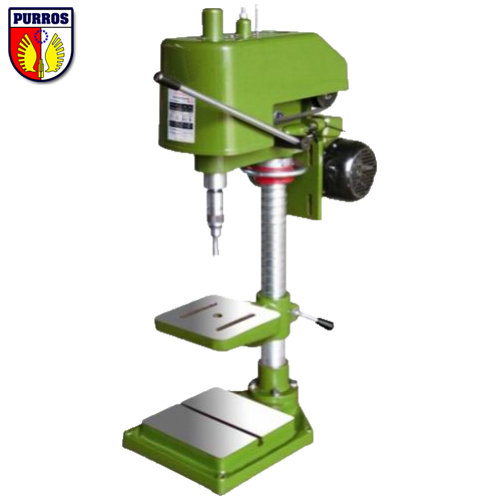

Bench Tapping Machine TWJ-24, Tapping capacity: M20(Cast Iron)/M24(Steel)


Model TWJ-24
Max. Tapping capacity (mm) M20/M24
Diameter of column (mm) 70
Spindle travel (mm) 50
Distance spindle axis to column generating line (mm) 198
Max. Distance spindle nose to table (mm) 545
Max. Distance spindle nose to base (mm) 760
Spindle taper B22
Spindle speeds range (r/min) 180、320、480
Spindle speeds series 3
Dimension of base (mm) 280 X 280
Spindle box travel (mm) 495 X 375
Overall height (mm) 1057
Power of main motor (KW) 1.1
G.W/N.W (kg) 160/140
Packing dimension (cm) 80 X 45 X 120
