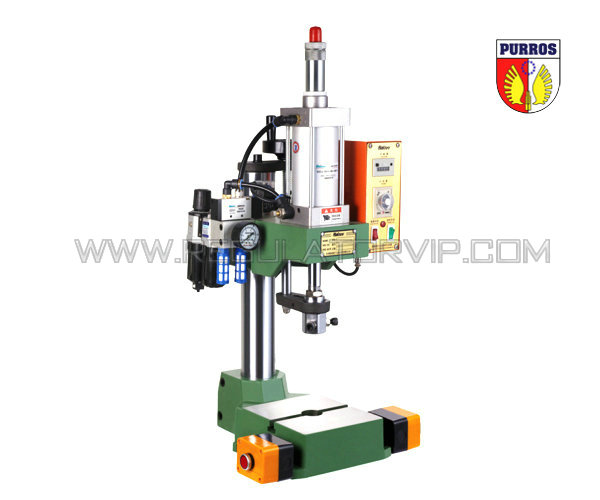

Description
PRNA-2000 F Pedal Control
PRNA-2000 H Button Control
| Model | PRNA-1300A | PRNA-2000 | PRNA-2600 |
| Maximum working height (mm) | 460 | 350 | 400 |
| Connection Block(whole group adjustable) | 300 | 220 | 250 |
| Cylinder soecifications (mm) | Φ160×100 | Φ200×100 | Φ160×100 |
| Adjustable stroke of cylinder (mm) | 50 | 50 | 50 |
| Area of working bench (mm) | 300×300 | 300×300 | 300×300 |
| Power (AC,50HZ) | 220V | 220V | 220V |
| Weight (kg) | 205 | 213 | 215 |
| Operating pressure | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 |
| Mpa | Theoretic pressure(KG) | ||
| 0.4 | 753 | 1204 | 1506 |
| 0.5 | 942 | 1504 | 1884 |
| 0.6 | 1130 | 1804 | 2260 |
| 0.7 | 1318 | 2104 | 2636 |
The actual output is about 80% theoretical output.
| Model | C | D | d | E | F | G | G1 | H | h | h1 | J | L | M | N |
| PRNA-1300A | 500 | Φ53 | Φ30 | 150 | 300 | 300 | 370 | 1250 | 450 | 120 | 200 | 45 | M10 | Φ110 |
| PRNA-2000 | 500 | Φ53 | Φ30 | 150 | 300 | 300 | 370 | 1350 | 450 | 120 | 200 | 45 | M10 | Φ110 |
| PRNA-2600 | 500 | Φ53 | Φ30 | 150 | 300 | 300 | 370 | 1450 | 450 | 120 | 200 | 45 | M10 | Φ110 |

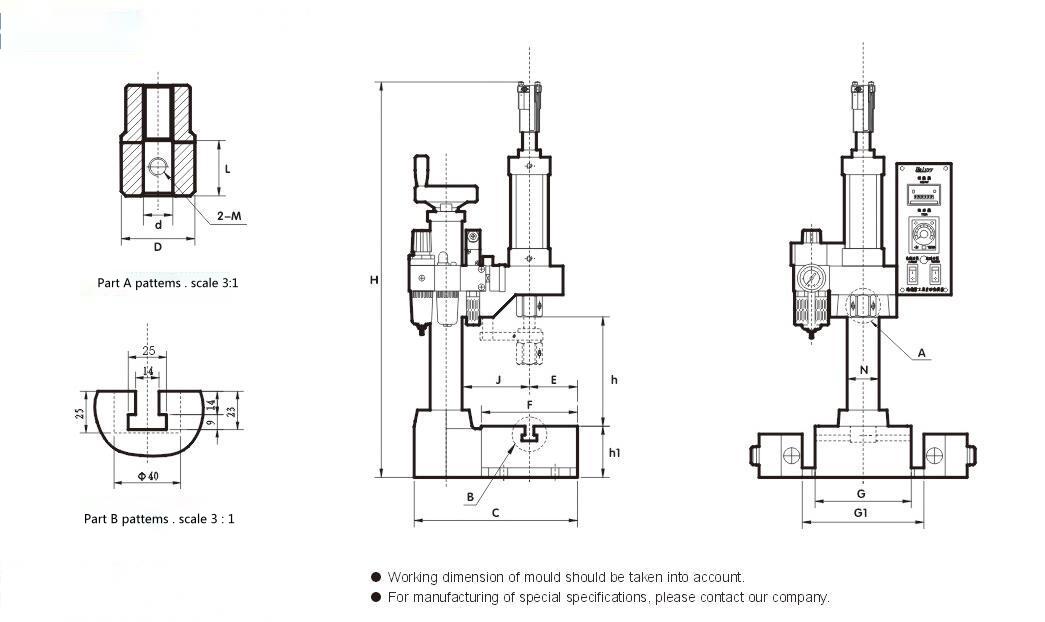

Drawing on physical dimension

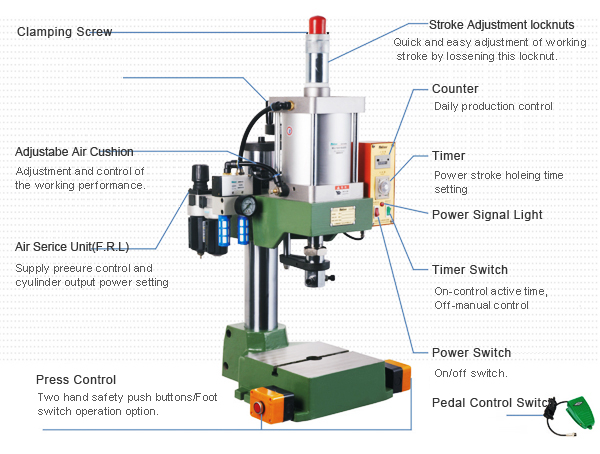

· Take compressed air as power source,easy to operate.
· There is not noise and environmental pollution generated by hydraulic system in standby timd,power consumption can be saved,and production costs can be reduced.
· Multi-functional purposes is suitable for pressure intl the bearings,punching,riveting,assembly,cutting,etc.
The shut heighy can be adjusted according to the size of the product or the mold.
· Adjustable stroke cylinders,stroke can be customized,column heighy can also be customized.
Output force is easily adjusted by adjusting air pressure,the required pressure can be gotten only by adjusting air pressure,it is simple and convenient.
· Safety design,comfortable operation,human-based consideration suitable for long-terni operatuion.
· If need to do quick digression during operation,quick exhaust valve is optional.
LOCK SCREWS
Please loosen both locking screws at first when adjust the height of movable base.
Movable base do a up and down moving,it is used to adjust the gap between it and vertical column.
To fasten locking screws after finish adjusting gap.
